240 fuel level sender sweep resistance

[Chance]

Im trying to figure out the sweep resistance of a 240 fuel level sender. Not much luck on searching and found a couple different postings on the web that don't match up. Bentley manual is kinda vague and the chilton doesn't list anything about the sender as far as I can find. Trying to match it up to an aftermarket guage. Worse comes to worse ill pull it and do a bench test if no one knows. Thanks guys



[cleanflametrap]

Nominally 300 ohms.



[Chance]

Thanks man. Looks like the closest vdo vision to match the rest of my gauges is 240-33. I guess that would work it would just never show empty? Bentley says 250-350ohms when empty.

Edit: now that I think about it a guage rated at 240-33 with a sender rated at 285-30 the guage would get to empty sooner so that would probably be ok



[TrickMick]

FYI....DOWNLOAD AND FILE:

http://www.nsifleet.com/pdf/FuelResistanceChart.pdf

http://www.nsifleet.com/pdf/PressureResistanceChart.pdf

http://www.nsifleet.com/pdf/TemperatureResistanceChart.pdf

the GREENBOOKS have SCANT info (at least the ones I have)

http://www.k-jet.org/files/greenbooks/TP11402-2_electrical_system.pdf see page * 57 thru 60 * group 38 instruments

http://www.volvowiringdiagrams.com/volvo/LH 2.4/LH2.4 Manual Complete.pdf coolant temp sensor chart pg * 4 *

a Art's ACTUAL measurements are the best indicator!....



[Chance]

Excellent info there sir! Thank you.
I went ahead and pulled the sender to sweep it. Came out 28-285 ohms just FYI for future people searching for this



[Chance]

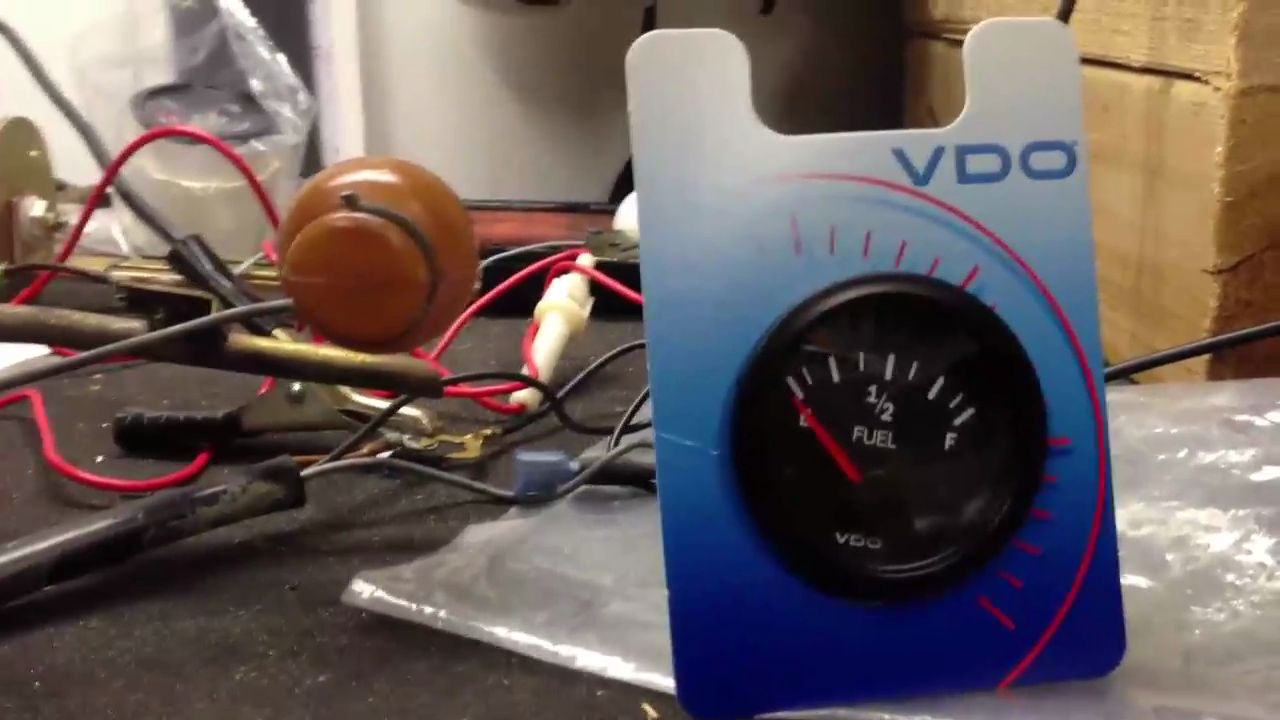

VDO 240-33ohm gauge works perfectly with the stock sender
http://i208.photobucket.com/albums/...-8FB4-55A91D3A4F74-16361-00000645350E92D1.mp4
