Advance/retard timing on EZ116K

  • Thread starter Thread starter frpe82
  • Start date Start date
Connector comparison - original on right

temp-Imagei-ZPNHS.avif

orignal on left
temp-Imageo-Zhsz-J.avif

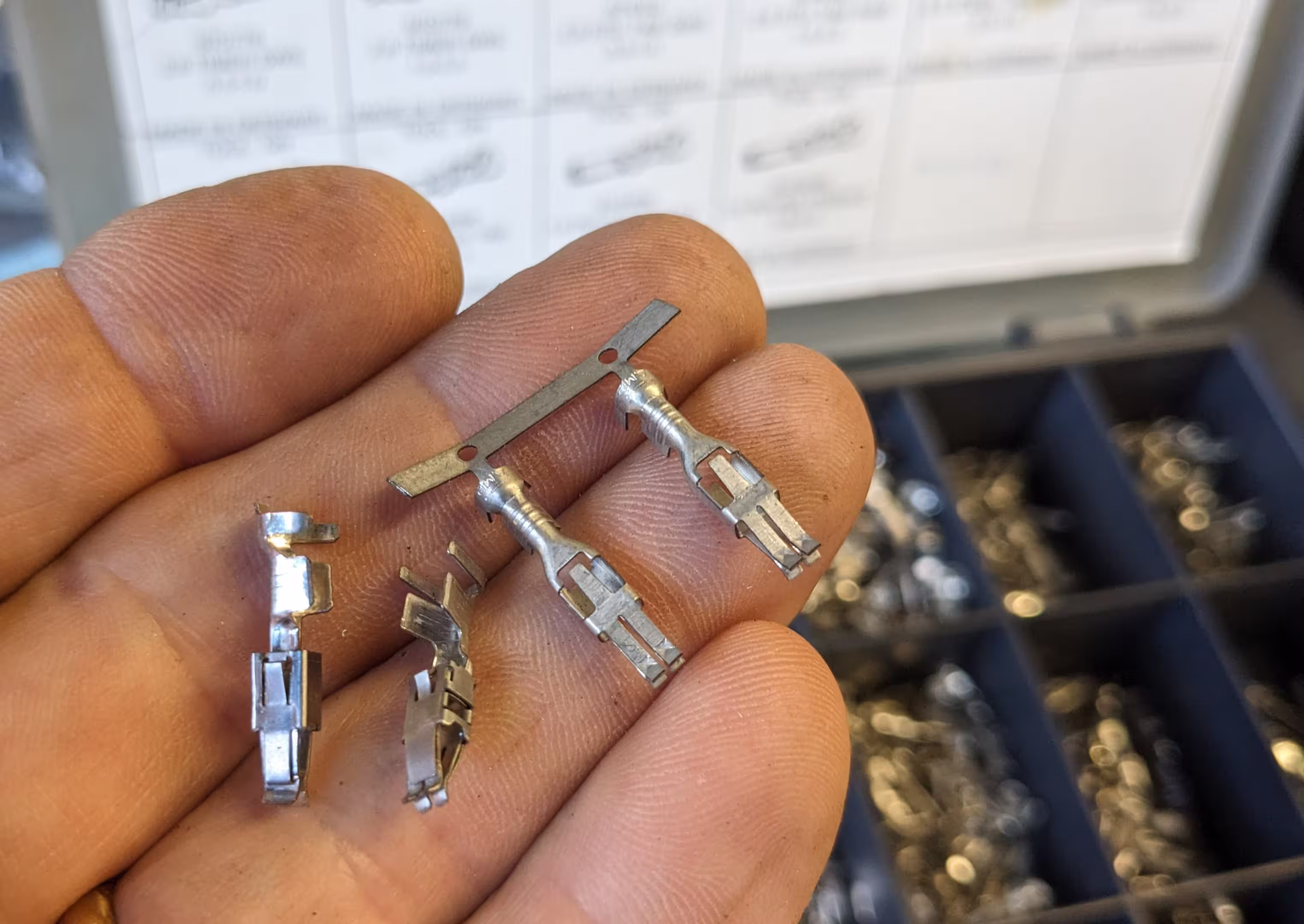

new style & old style.
temp-Image-Gt-Hfl9.avif

temp-Image-CNU1-PR.avif

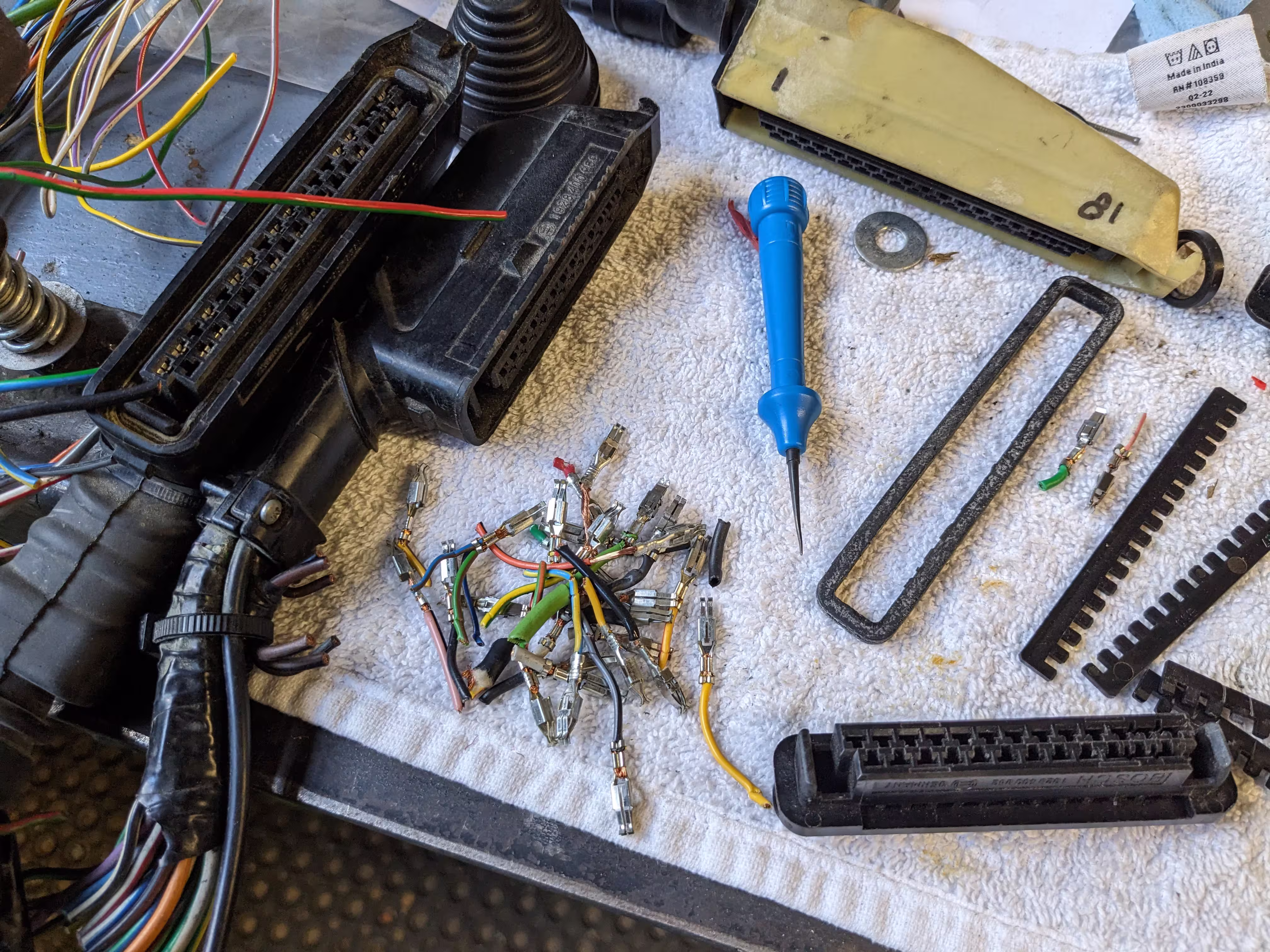

Original 35 & 25 pin ECU conectors - one tab as noted, however two tab terminals lock into housing without issue
temp-Imagem-L70-Mo.avif

I confirm they fit perfectly into the Bosch ECU connectors, I've used them with success a few years ago when I built my ECU breakout box and I had to wire the unused pins.
They fit also in EV1 injectors plugs and the other ones with more pins.
